Using Dropbox to sync Booth (iPad+iPhone) events

Screenshots in this tutorial have not been updated for the latest release, and may look a little different from the current versions of the Event Editor and App

Introduction

When you download Breeze Booth from the App Store, you are prompted to sync (ie download) sample events from Breeze servers at https://bb4ipad/com/sync

You create your own events on a Windows PC using the Breeze Booth Event Editor.  Once your designs are finished, you need to transfer them to your iPads and iPhones. When these devices are away from your office, the simplest method is to use Dropbox. You need a paid DropBox account for this to work effectively.

This post explains

• how to set up Dropbox on each iPad (or iPhone)
• how to use Dropbox to transfer your events to devices anywhere in the world

References to iPads also refer to iPhones.

Setting up Dropbox on your iPad

• Download and install the official Dropbox app on your iPad from the Apple App Store (currently labelled Dropbox:Cloud Files Storage). You will need a paid subscription such as Dropbox Plus.
• Select Sign in to Dropbox in Breeze Booth for iPad’s app settings and authorize the app. This will create a “Breeze Booth for iPad” folder in your Dropbox “Apps” folder.

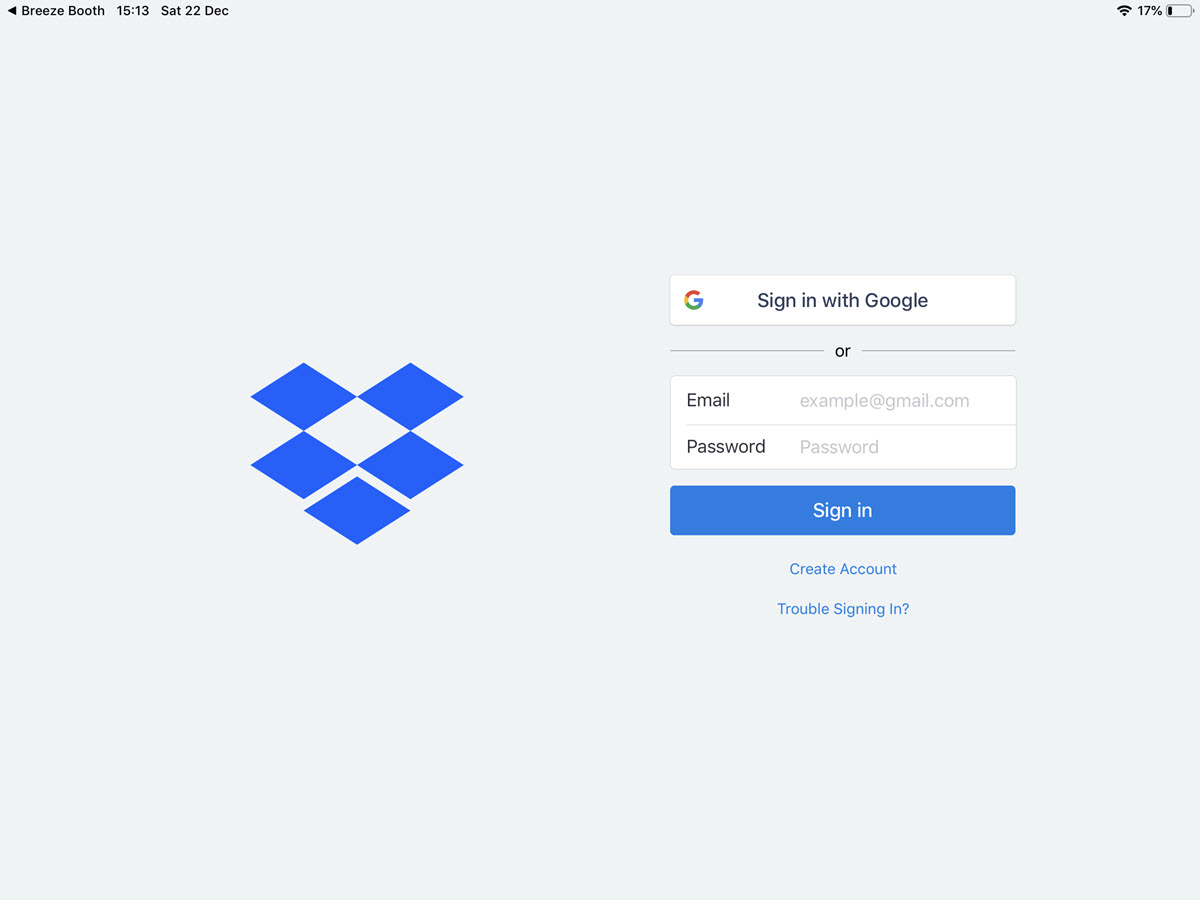

1. Log into Dropbox on the iPad

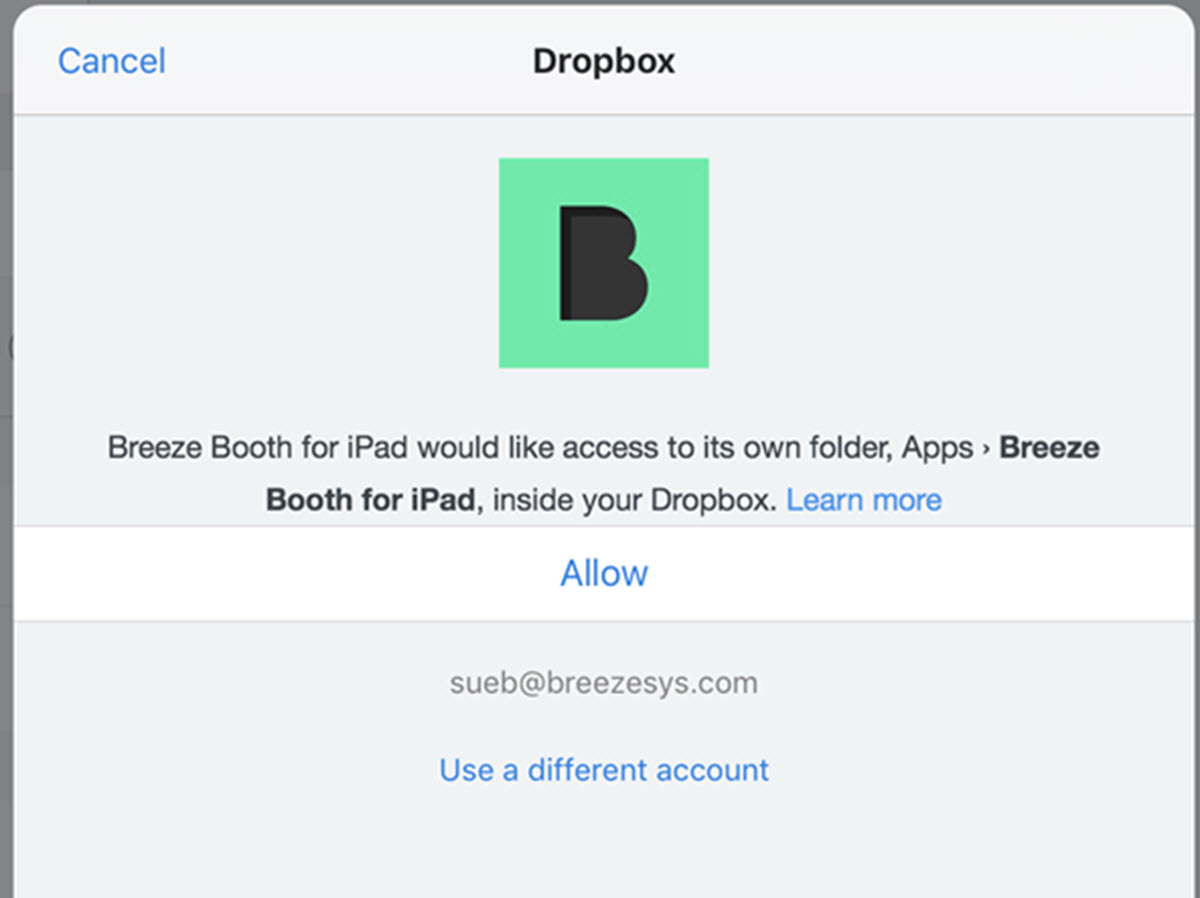

2. Allow Breeze Booth to access Dropbox

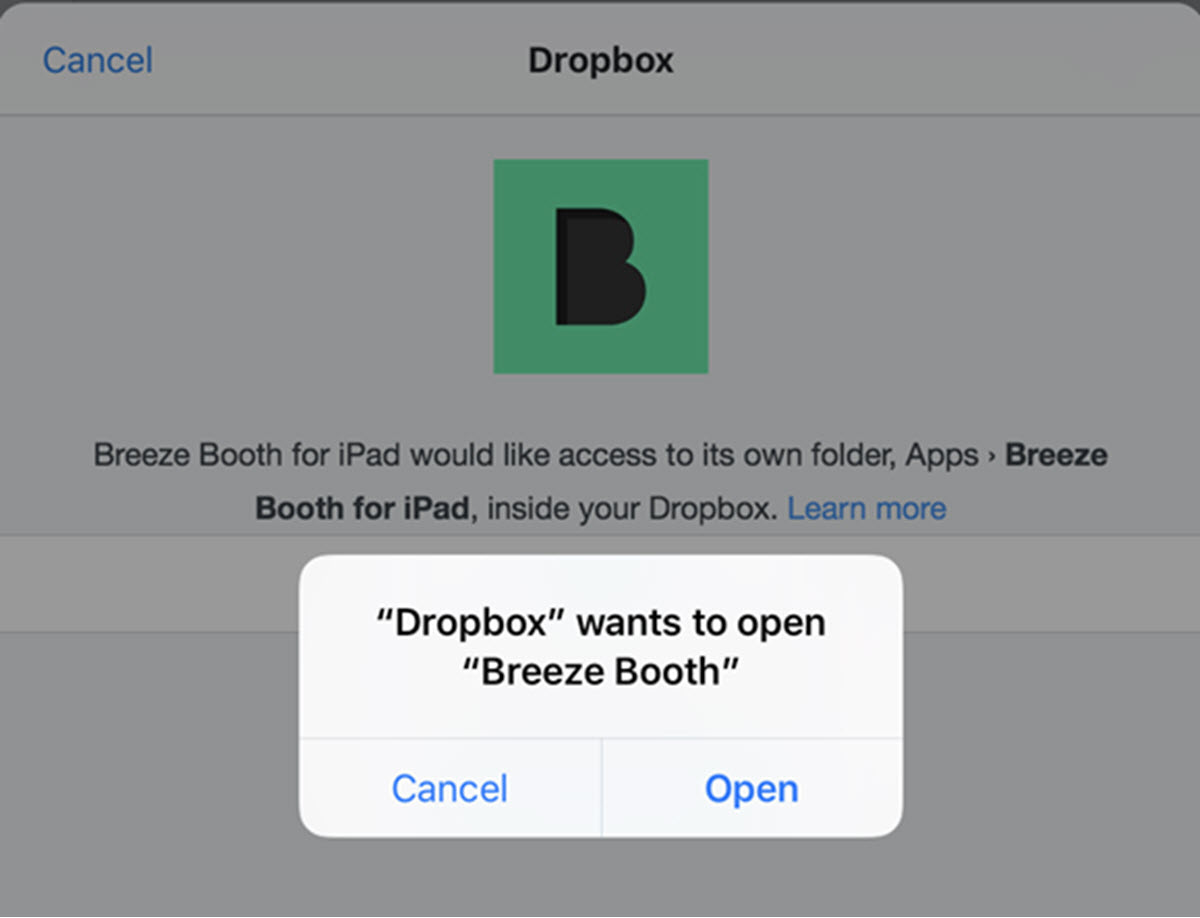

3. Allow Dropbox to open Breeze Booth

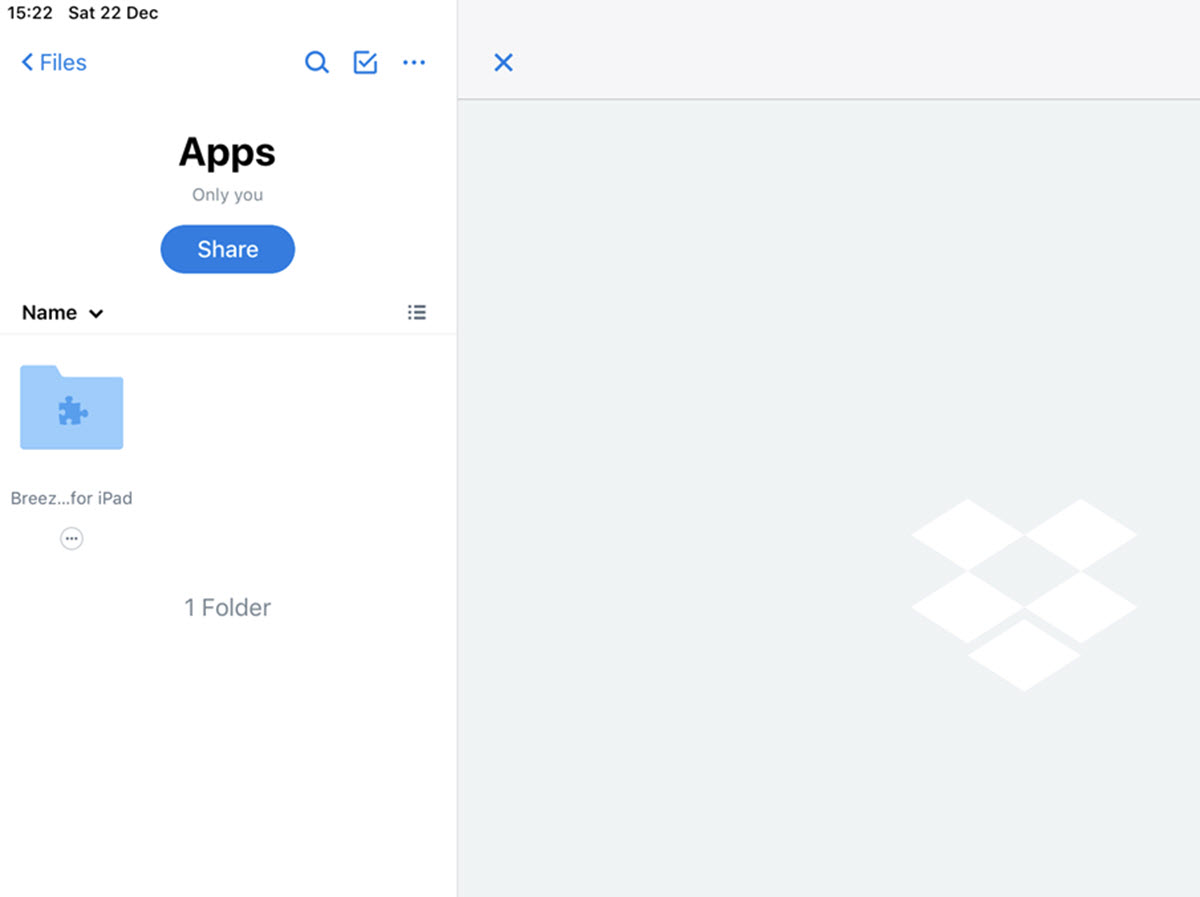

4. Apps>Breeze Booth for iPad folder in Dropbox



Copy the events on your PC to your Dropbox folder

Once you have set up Dropbox for Breeze Booth you need to copy your folder of events into the correct Dropbox folder to transfer them to the iPad.

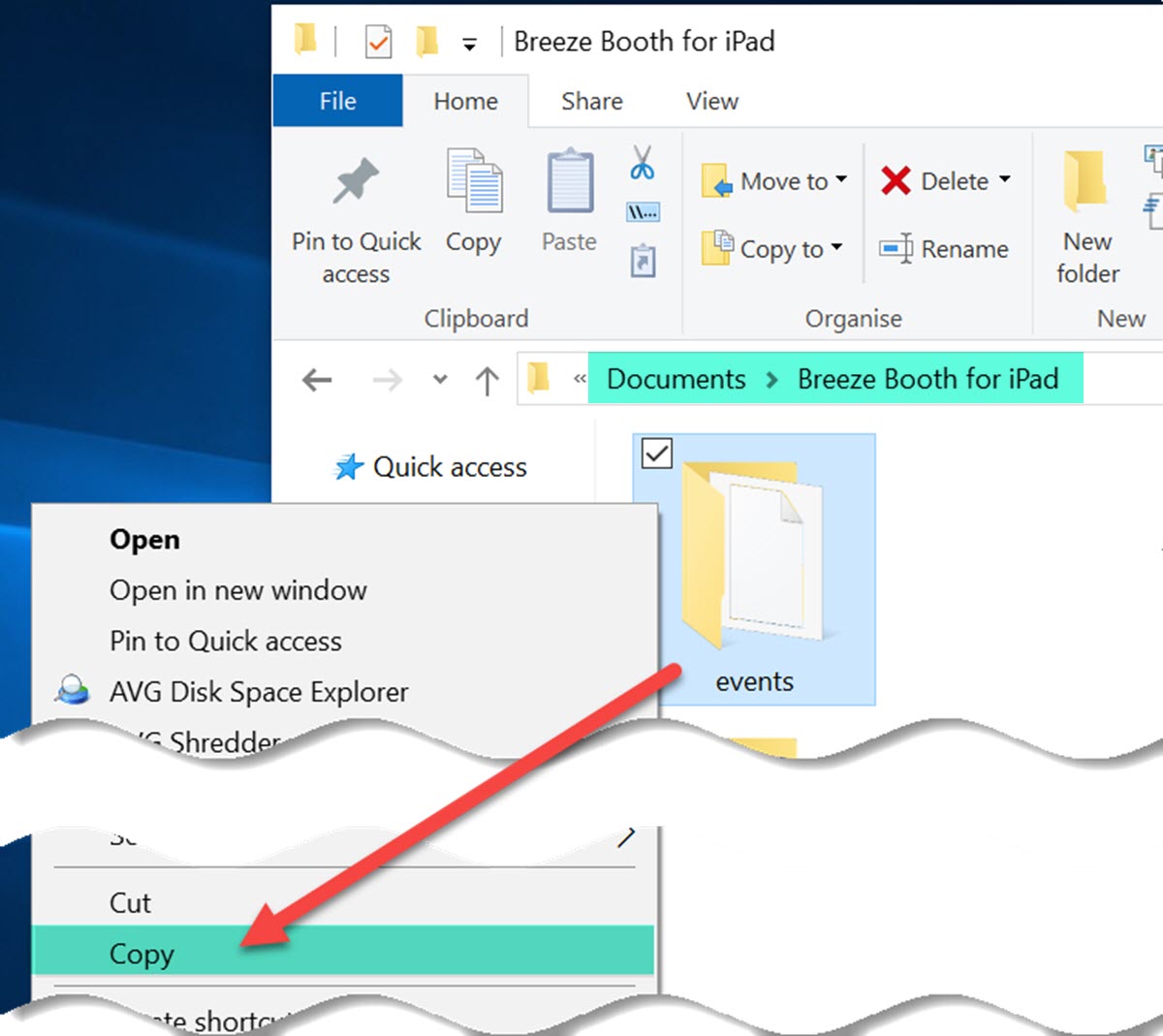

Copy the events folder from C:\Users\yourname\Documents\Breeze Booth for iPad

to C:\Users\yourname\Dropbox\Apps\Breeze Booth for iPad

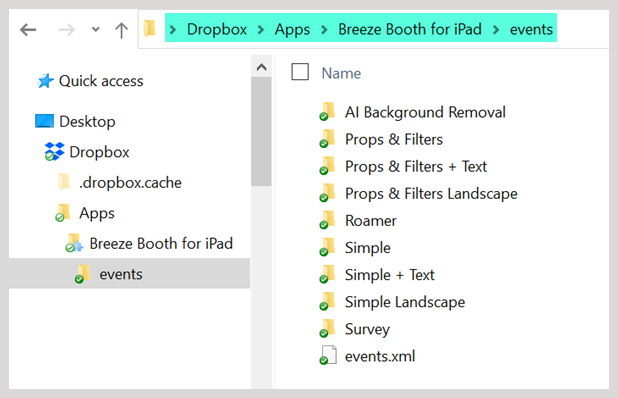

Dropbox folder structure for the events folder

Important

• When you sync the events using Dropbox on your iPad, the program will look for this events folder. You must name it correctly, or the App will not find your events.
• C:\Users\yourname\Dropbox\Apps\Breeze Booth for iPad is also a special folder. Do not delete or rename this folder.
• Advanced users can use tokens including {eventName} in your Dropbox folder naming. This post does not cover this.

Saving events straight to Dropbox

Once the initial set of events have been copied to Dropbox, you can either save new and updated events directly into Dropbox, or continue using an intermediate folder and manually copy them. Saving events straight to Dropbox is simpler and faster.

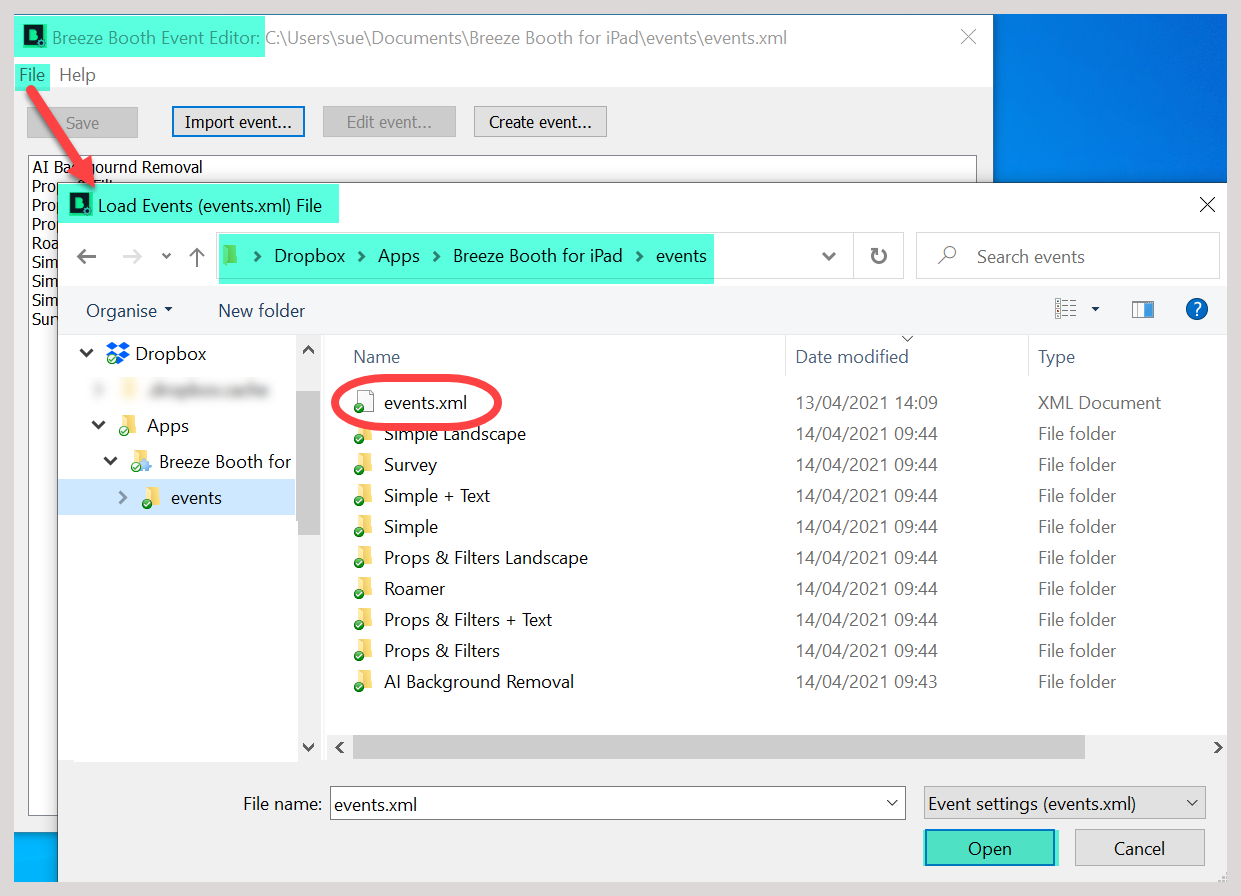

To direct the Event Editor to load and save events in Dropbox, select File then Open, navigate to C:\Users\…\Dropbox\Apps\Breeze Booth for iPad\events  and open events.xml

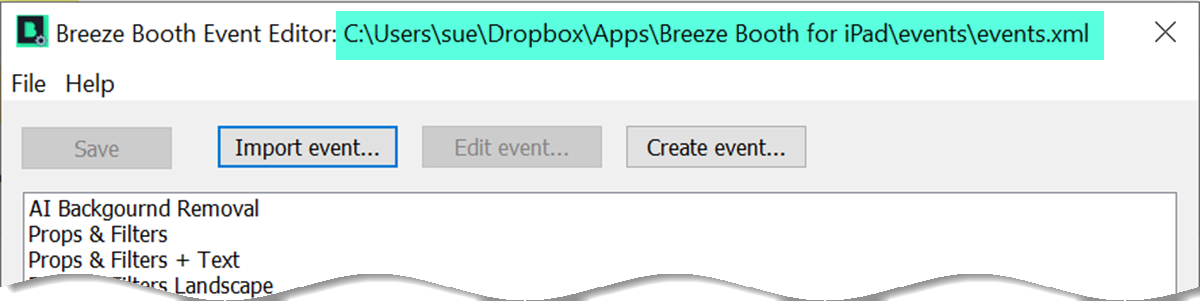

When you return to the main Event Editor screen note that the folder name at the top has changed:

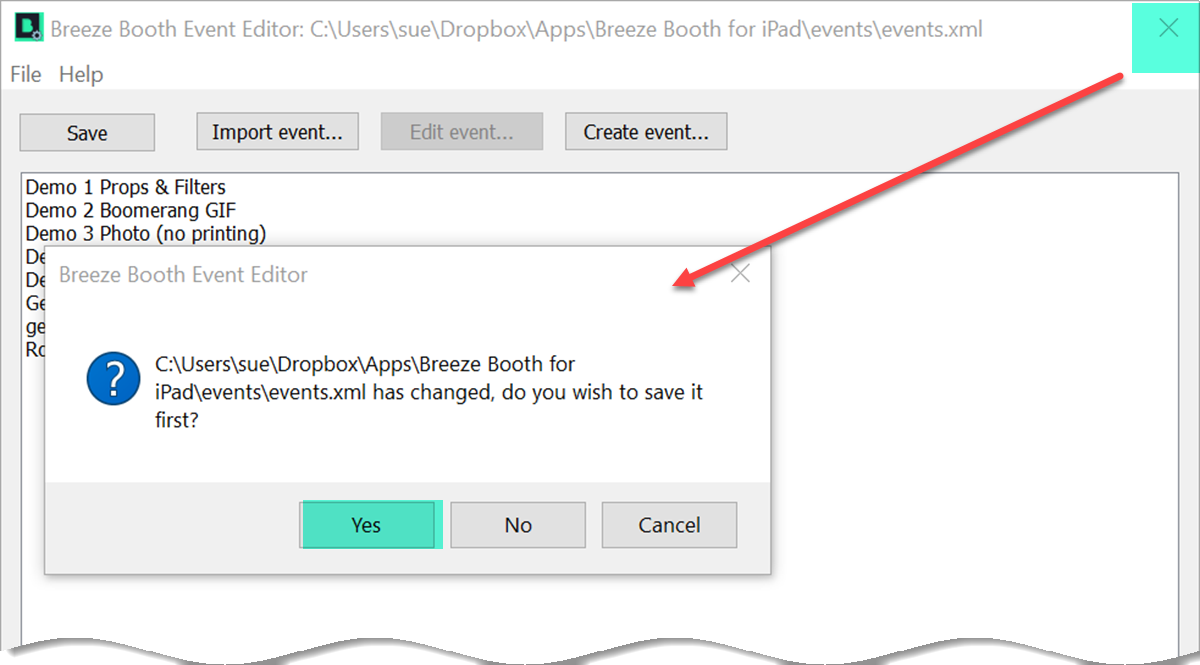

You may be prompted to save your changes before closing the Event Editor



Tell Breeze Booth for iPad to sync events using Dropbox

As there are several ways to sync events, you need to tell your iPad that you are using Dropbox.. In Breeze Booth for iPad go to Settings. Select the Sync via Dropbox, then Save.

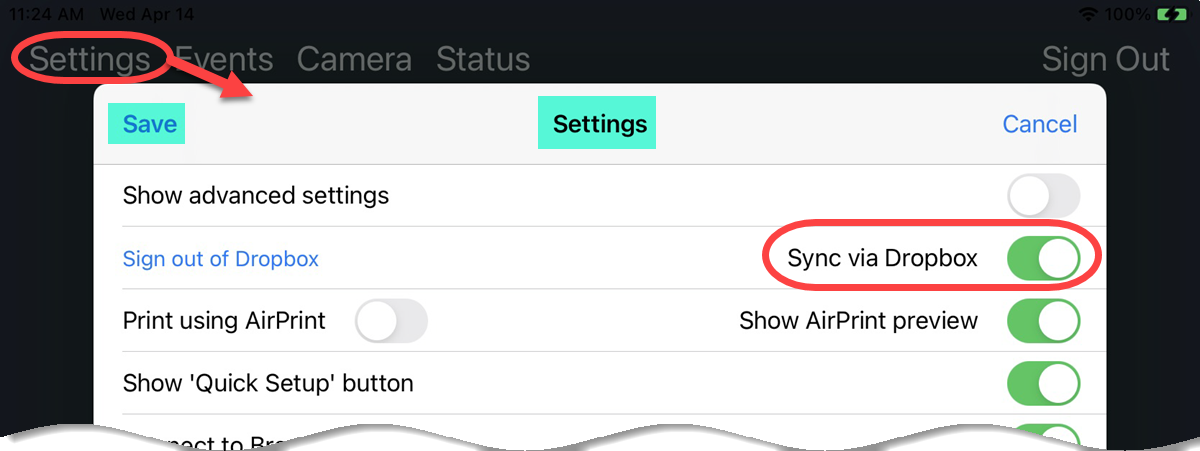

Select Sync by Dropbox, then Save (Breeze Booth for iPad settings screen)

Import the latest version of your events from Dropbox to Breeze Booth for iPad

So far, we have put your designs ( ‘events’) into your Dropbox folders and ensured Breeze Booth can see them there. The final step is to update the App with the latest designs you want it to use.

You can choose whether to update (‘sync’) all your events at the same time, or update a single event. Updating all events is the best way to check everything on the iPad is up to date, but may be slower than updating a single event (especially if you have a poor Internet connection). You can also update the event list before updating individual events.

For details, see Deploying events to your iPads and iPhones

Concerned about guests getting access to your Dropbox files from the iPad?

Advanced users: Signing into the Dropbox App on an iPad and signing Breeze Booth for iPad into your Dropbox account are not the same. Once your events are set up correctly, you can secure your Dropbox account by:

• either signing out from the Dropbox App and keeping Breeze Booth for iPad signed into Dropbox
• or Deleting the Dropbox App from the iPad

Only delete the Dropbox App from the iPad when Breeze Booth for iPad is signed in to DropBox. If you sign Breeze Booth for iPad out from Dropbox, you  will need to reinstall the official Dropbox app before signing back in again.

You can also set an exit password to keep guests from accessing the Breeze Booth for iPad settings page

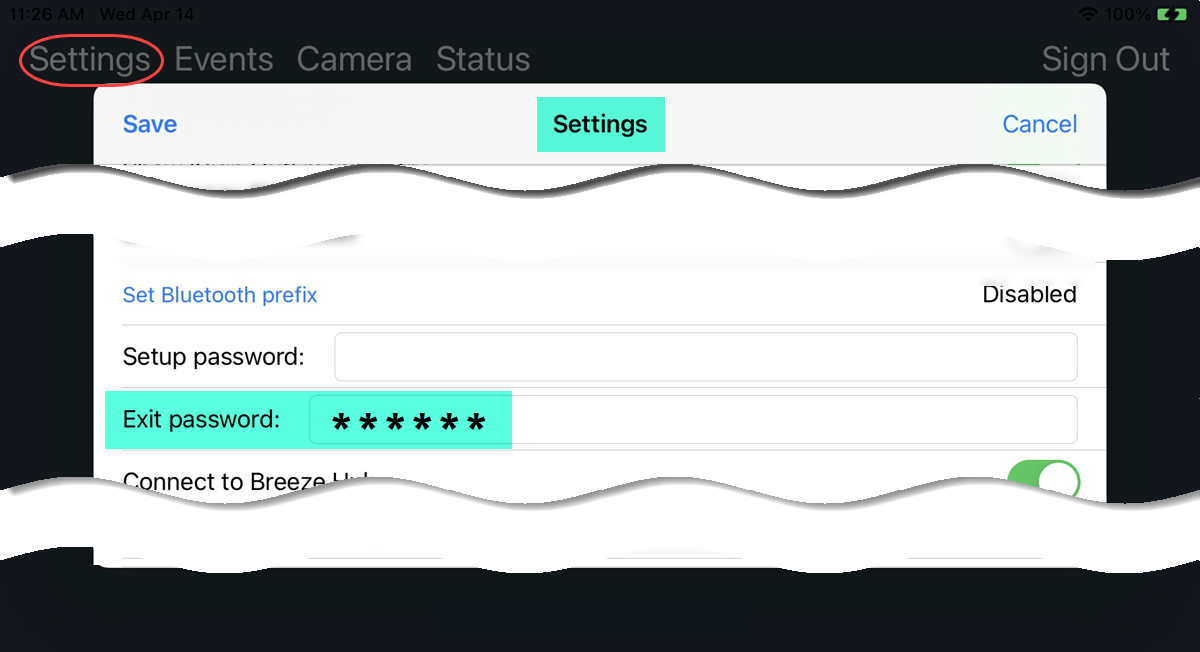

 Using an exit password to keep sticky fingered guests from  the Breeze Booth for iPad settings page

To set up a password, go to the App settings screen and select the button to Show advanced settings. This reveals a more detailed version of the settings screen. Put your password into Exit password and press Save

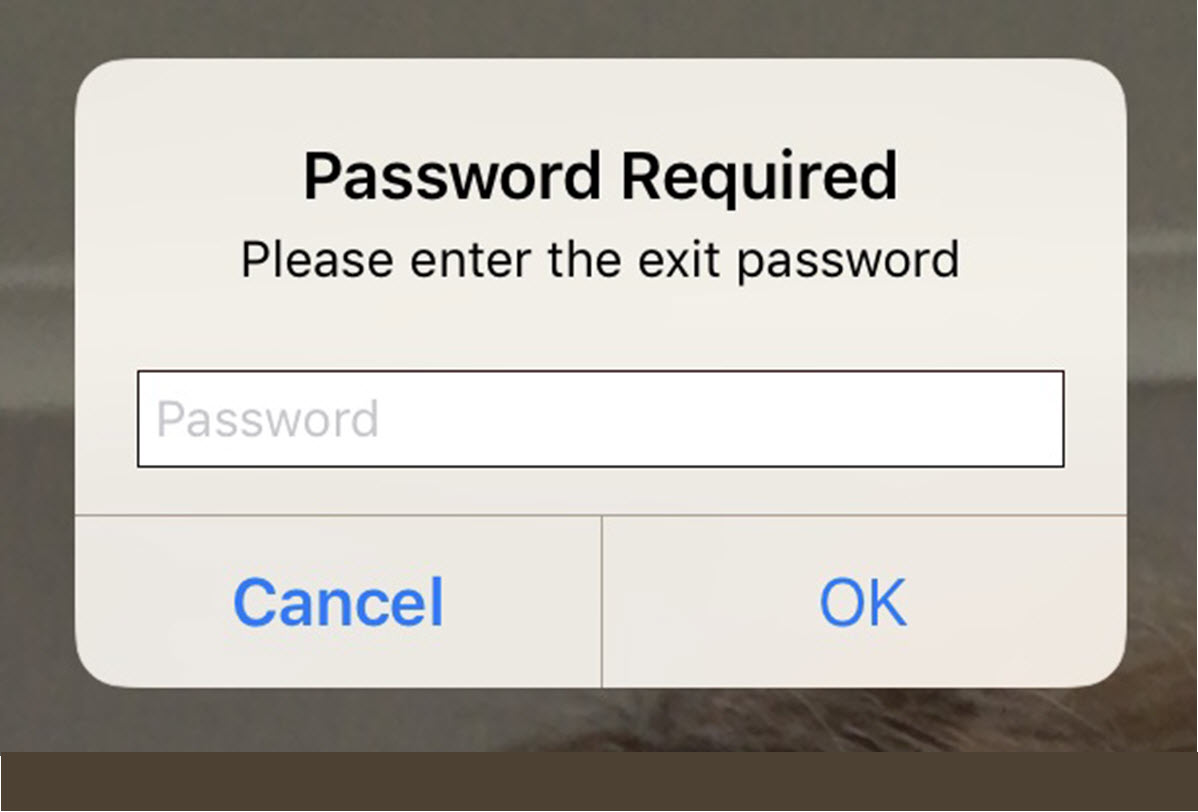

Now if your guests tries to access the settings screen, they will be asked for the exit password:

Keep life simple when syncing with Dropbox

• Do name your folders correctly
• Do not uninstall Breeze Booth for iPad from your iPads
• Do not delete the Breeze Booth for iPad folder in Dropbox

Stuck? Getting out of trouble

iPad App can’t find my new/updated events

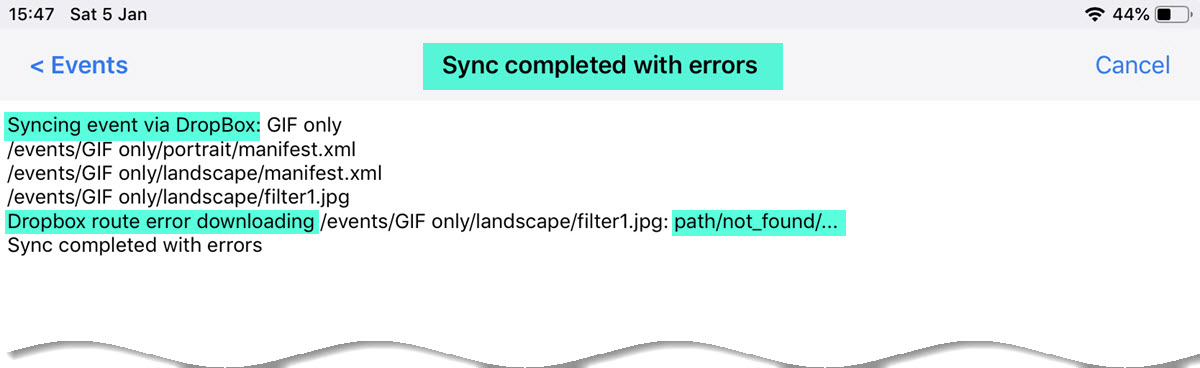

Path not found errors occur when the App cannot find the event files. Causes:

• Dropbox has not finished syncing the files to the iPad
• Dropbox folders or files are not named correctly

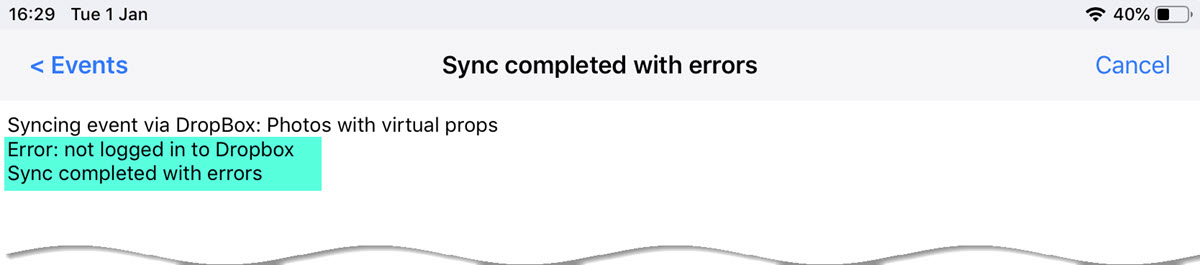

Error: not logged into Dropbox occurs if Breeze Booth for iPad is not signed into Dropbox

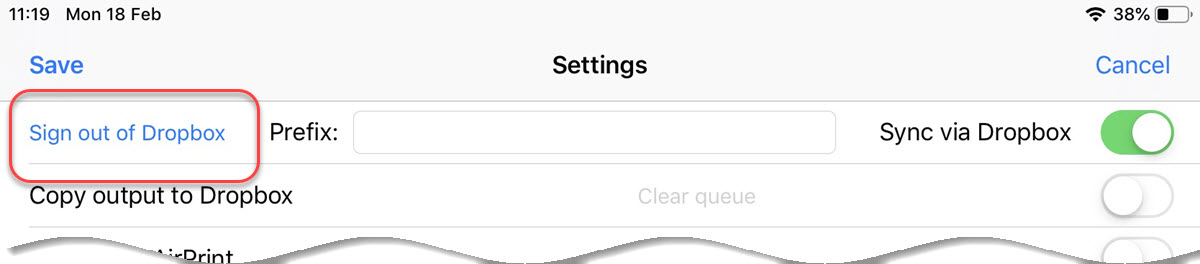

Check the iPad settings screen:

More places to find help

• Breeze Booth for iPad tutorials
• Detailed online manual
• If you can’t find an answer in the help files, feel free to email support@breezesoftware.com or post in the Breeze User group on Facebook

Summary

This tutorial explained how to transfer new and updated events from a PC to Breeze Booth for iPad using Dropbox. You need a paid Dropbox account and an Internet connection for this to work effectively.
