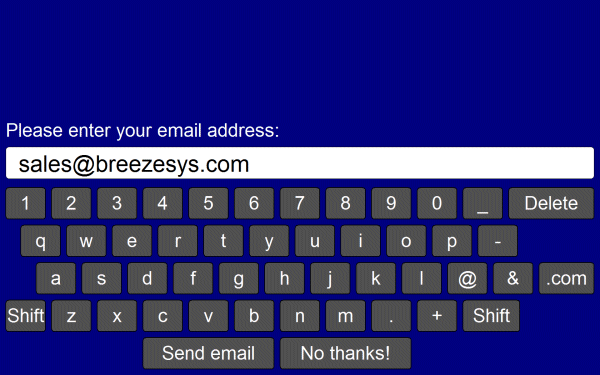

The touchscreen keyboard is automatically displayed when the user needs to type in some text such as their email address when sending emails or their Twitter username and password when posting photos Twitter. Breeze Kiosk provides default keyboard layouts for email address entry, Twitter username and password and for entering the password when exiting full screen kiosk mode.
The touchscreen keyboards used for email addresses or Twitter login details can be tested by pressing the "Test keyboard..." buttons in the general section of Breeze Kiosk's preferences. The default keyboard layout for email addresses will fill the screen and look similar to the screenshot below:
Customizing the keyboard
The layout of the keyboard can be customized by creating an XML settings file called keyboard.xml and putting this in the photo booth images folder. This gives control over the size and position of the keys, the background color etc. A series of keyboard images can also be used if you need more control of the appearance of the keyboard.
The easiest way to customize the keyboard is to save a copy of the XML file and TIFF screen images used to define the default keyboard layout and then edit them as required. The files can be saved by first displaying the keyboard by pressing the "Test keyboard..." button and then holding down both the Shift and Ctrl keys and pressing the left mouse button. The keyboard.xml file will look something like:
<?xml version="1.0" ?>
<breeze_systems_photobooth version="2.2">
<photobooth_settings>
<keyboard>
<text_point_size>480</text_point_size>
<prompt1>Please enter your email address:</prompt1>
<text1_y>411</text1_y>
<text1_x>50</text1_x>
<text1_w>300</text1_w>
<background_color>0x000080</background_color>
<transparent_color>0x000080</transparent_color>
<text_color>0xFFFFFF</text_color>
<show_cursor>0</show_cursor>
<show_mouse_cursor>0</show_mouse_cursor>
<key>
<left>58</left>
<top>630</top>
<width>112</width>
<height>89</height>
<legend>q</legend>
<shifted_legend>Q</shifted_legend>
<code>q</code>
<shifted_code>Q</shifted_code>
</key>
<key>
<left>186</left>
<top>630</top>
<width>112</width>
<height>89</height>
<legend>w</legend>
<shifted_legend>W</shifted_legend>
<code>w</code>
</key>
...
<key>
<left>1296</left>
<top>840</top>
<width>160</width>
<height>89</height>
<legend>Shift</legend>
<shifted_legend>Shift</shifted_legend>
<code>Shift</code>
<shifted_code>Shift</shifted_code>
</key>
<key>
<left>400</left>
<top>945</top>
<width>368</width>
<height>89</height>
<legend>Send email</legend>
<shifted_legend>Send email</shifted_legend>
<code>OK</code>
<shifted_code>OK</shifted_code>
</key>
<key>
<left>784</left>
<top>945</top>
<width>368</width>
<height>89</height>
<legend>No thanks!</legend>
<shifted_legend>No thanks!</shifted_legend>
<code>Cancel</code>
<shifted_code>Cancel</shifted_code>
</key>
</keyboard>
</photobooth_settings>
</breeze_systems_photobooth>
Text input
The <prompt1> tag defines the text that is displayed above the user input area and defaults to "Please enter your email address:". The <text1_x> and <text1_y> tags specify the position of the user input area. This is specified as the number of pixels down from the top, left corner of the screen. The width in pixels of the user input area can be specified using the <text1_w> tag.
Additional prompts can be added by including <prompt2>, <text2_x>, <text2_y>, <text2_w> etc. tags up to a maximum of 10 user input areas.
The prompt tags can have an optional password attribute which if set to "1" will display the text in the user input area as * characters e.g. <prompt1 password="1">Please enter your password:</prompt1>.
The prompt tags can have an optional email_address attribute which if set to "1" will check that the text looks like an email address in the form name@domain.com e.g. <prompt1 email_address="1">Please enter your email address:</prompt1>. If the text does not appear to be an email address an error message will be displayed. CC addresses can be entered when emailing images by defining multiple prompts with the email_address attribute. The first prompt containing an email address will be used as the main "To" address and any additional prompts containing email addresses will be used as CC addresses.
When more than one user input area is defined users can switch between the input areas by touching them. The currently selected input area is highlighted in red.
The optional <text_point_size> tag defines the size of the text font used in the user input area. This is specified in tenths of a point and defaults to 480 (a point size of 48).
The text entered by the user is stored in the <user_data>, <user2_data> etc. fields in the XML file saved with the photos.
Checkboxes
Up to 10 checkboxes can be added using the <chkbox1_prompt>, <chkbox1_x>, <chkbox1_y>, <chkbox2_prompt>, <chkbox2_x>, <chkbox2_y> etc. tags. The <chkbox1_prompt> tag specifies the text displayed to the right of the text box and can include a value attribute to specify whether the checkbox is initially checked or not e.g. <chkbox1_prompt value="0">Checkbox prompt (default off)</chkbox1_prompt> or <chkbox1_prompt value="1">Checkbox prompt (default on)</chkbox1_prompt>.
A checkbox can also be made mandatory (i.e. the user has to check the checkbox before pressing the "OK" button) by adding the mandatory attribute to the <chkbox1_prompt> tag e.g. <chkbox1_prompt mandatory="1">I agree to the terms and conditions</chkbox1_prompt>.
The optional point_size attribute can be used to specify the point size of the legend and also the size of the checkbox box e.g. <chkbox1_prompt point-size="240">Checkbox</chkbox1_prompt> adds a checkbox with the legend displayed using 24 point text.
The <chkbox1_x> and <chkbox1_y> tags specify the position of the checkbox.
The checkbox status is stored in the <chkbox1>, <chkbox2> etc. fields in the XML file saved with the photos.
Adding an Information Page
An optional information page can be displayed to provide more information to the user e.g. a privacy policy or help information.
To add an information page create a JPEG or TIFF screen image with the same name as the keyboard.xml file e.g. email_keyboard_info.jpg. This can be displayed by defining a key with the code "info". The info screen will close automatically after a timeout of 30 secs. It can be closed manually by defining a key with the code "info close" and tapping on it.
Color and Other Settings
The <background_color> tag specifies the background color of the window and the <key_text_color> specifies the color for the prompt text and key legends.
The optional <text_foreground_color> tag specifies the foreground color for text displayed in the user input areas. The default value if this tag is omitted is black (0x000000).
The optional <text_background_color> tag specifies the background color for the user input areas. The default value if this tag is omitted is white (0xFFFFFF).
The optional <transparent_color> tag specifies a color which will be made transparent when the keyboard is displayed.
All colors should be hexadecimal RGB values e.g. 0x000000 for black, 0xFF0000 for red, 0x00FF00 for green, 0x0000FF for blue, 0xFFFFFF for white.
The <show_cursor> tag specifies whether a gray cursor is shown in the user input area. Set this to 1 to display the cursor or 0 to hide it. The cursor display is useful if the keyboard allows the entry of spaces.
The <show_mouse_cursor> tag specifies whether a the mouse cursor is displayed, The default setting is for the mouse cursor not to be displayed.
The <key> tag specifies the size and position of each key, its legends and what should be typed when it is pressed. The top left corner of the key is defined using the <left> and <top> tags and the width and height are specified using the <width> and <height> tags (all values are in pixels). The <shifted_legend> tag specifies what is displayed on the key when the shift key is pressed and the <legend> specifies the key legend when shift is not pressed.
The <shifted_code> tag specifies what is typed when the key is pressed when shift is pressed and the <code> tag specifies what is typed when the shift key is not pressed. The following codes have special values:
"Shift" - puts the keyboard into shifted mode (i.e. upper case) when pressed
"info" - display the optional info screen if defined
"info close" - close the optional info screen and return to the touchscreen keyboard
"OK" - closes the keyboard window and returns the user input if at least one text input field contains text
"OK all" - closes the keyboard window and returns the user input if all the input fields contain some text
"OK none" - closes the keyboard window and returns the user input even if none of the input fields contain text
"Cancel" - closes the keyboard window and cancels the user input
Entering non-ASCII International Characters
International characters can be added by using the character's unicode value e.g. the Euro currency symbol € is represented by the unicode character U+20AC and should be added to the XML file as € as shown in the example below:
<key>
<left>58</left>
<top>630</top>
<width>112</width>
<height>89</height>
<legend>2</legend>
<shifted_legend>€</shifted_legend>
<code>2</code>
<shifted_code>€</shifted_code>
</key>
The keyboard.xml can just include additional settings and the touchscreen keyboard will use the default layout (shown above) if it doesn't contain any <key> tags. For example you could use the default keyboard layout and add a checkbox to ask users whether they consent to their photos being uploaded to a website using the keyboard.xml file below:
<?xml version="1.0" ?>
<breeze_systems_photobooth version="2.3">
<photobooth_settings>
<keyboard>
<chkbox1_prompt value="0">I agree to my photos being posted on a web site</chkbox1_prompt>
<chkbox1_x>38</chkbox1_x>
<chkbox1_y>70</chkbox1_y>
</keyboard>
</photobooth_settings>
</breeze_systems_photobooth>
When the Twitter upload option is used the touchscreen keyboard will look for a definition file named twitter_keyboard.xml instead of keyboard.xml. If the twitter_keyboard.xml file is not found the touchscreen keyboard will display two input areas to allow users to enter their Twitter username and password.
Keyboard images
Separate keyboard screen images can be defined if you need more control over the appearance of the keyboard. These images should be TIFF images the same size as the resolution of the screen and should be placed in the photo booth images folder. The default keyboard images should be named as follows:
keyboard_uppercase.tif - keyboard image showing upper case key legends
keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
keyboard_lowercase.tif - keyboard image showing lower case key legends
keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
If TIFF keyboard images aren't found the software will attempt to load JPEG images instead (keyboard_uppercase.jpg, keyboard_uppercase_pressed.jpg, keyboard_lowercase.jpg and keyboard_lowercase_pressed.jpg).
When the email option is used the touchscreen keyboard will look for the following keyboard xml definition file and keyboard images:
email_keyboard.xml - XML file defining the keyboard layout
email_keyboard_uppercase.tif - keyboard image showing upper case key legends
email_keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
email_keyboard_lowercase.tif - keyboard image showing lower case key legends
email_keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
When the SMS option is used the touchscreen keyboard will look for the following keyboard xml definition file and keyboard images:
sms_keyboard.xml - XML file defining the keyboard layout
sms_keyboard_uppercase.tif - keyboard image showing upper case key legends
sms_keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
sms_keyboard_lowercase.tif - keyboard image showing lower case key legends
sms_keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
When the MMS option is used the touchscreen keyboard will look for the following keyboard xml definition file and keyboard images:
mms_keyboard.xml - XML file defining the keyboard layout
mms_keyboard_uppercase.tif - keyboard image showing upper case key legends
mms_keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
mms_keyboard_lowercase.tif - keyboard image showing lower case key legends
mms_keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
When the Twitter upload option is used the touchscreen keyboard will look for the following keyboard xml definition file and keyboard images:
twitter_keyboard.xml - XML file defining the keyboard layout
twitter_keyboard_uppercase.tif - keyboard image showing upper case key legends
twitter_keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
twitter_keyboard_lowercase.tif - keyboard image showing lower case key legends
twitter_keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
If a password is required when exiting full screen mode the touchscreen keyboard will look for the following keyboard xml definition file and keyboard images:
password_keyboard.xml - XML file defining the keyboard layout
password_keyboard_uppercase.tif - keyboard image showing upper case key legends
password_keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
password_keyboard_lowercase.tif - keyboard image showing lower case key legends
password_keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
If the "Ask for email address before printing" option is selected the touchscreen keyboard will look for the following keyboard xml definition file and keyboard images:
print_keyboard.xml - XML file defining the keyboard layout
print_keyboard_uppercase.tif - keyboard image showing upper case key legends
print_keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
print_keyboard_lowercase.tif - keyboard image showing lower case key legends
print_keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
When privacy mode is selected the touchscreen keyboard will look for the following keyboard xml definition file and keyboard images when asking for the code:
privacy_keyboard.xml - XML file defining the keyboard layout
privacy_keyboard_uppercase.tif - keyboard image showing upper case key legends
privacy_keyboard_uppercase_pressed.tif - keyboard image showing upper case key legends with the keys pressed
privacy_keyboard_lowercase.tif - keyboard image showing lower case key legends
privacy_keyboard_lowercase_pressed.tif - keyboard image showing lower case key legends with the keys pressed
Please take care that the keys are in the same positions in each of the keyboard images and that these also correspond to the values in the keyboard.xml file. The <background_color>, <text_color>, <prompt>, <legend> and <shifted_legend> tags in the keyboard.xml file are ignored when keyboard images are used to define the appearance of the keyboard.
Note: If you only need to change the keyboard layout and are happy with the default keyboard display you only need to create a keyboard.xml file in the photo booth images folder and can delete the keyboard screen images (keyboard_uppercase.tif, keyboard_uppercase_pressed.tif, keyboard_lowercase.tif and keyboard_lowercase_pressed.tif). If keyboard images are defined the <prompt> tags in the keyboard.xml file will be ignored.
